120 watts PoE power supply, up to 30 watts per port
2x 10/100/1000M uplink ports
8x 10/100/1000M PoE+ ports
CCTV mode support remote PoE feeding up to 250m
VLAN mode isolate each PoE Ports for security
Watchdog reactivates the abnormalPD by resuming POE power
IEEE 802.3at / IEEE 802.3af standard compliant
Plug&play, simple setup with no configuration needed

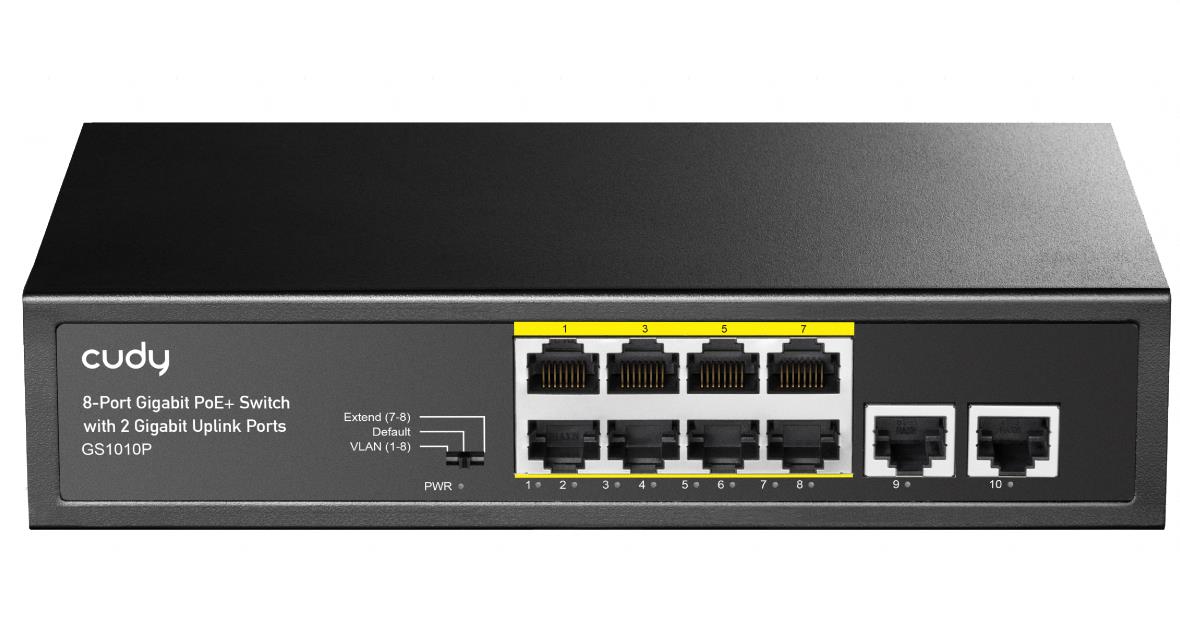

Model GS1010P PoE standard IEEE802.3af/at Interface 10*10/100/1000Mbps The RJ45 port through Key function CCTV&VLAN PoE port 1~8 port PoE Total 120W Power supply 120W RJ45 PoE power supply Mode A Anode1/2 Cathode3/6 PoE output-port Max 32W Indicator PWR, LNK/ACT, PoE Network media 10BASE-T: UTP category 3, 4, 5 cable(≤100m)；100BASE-TX: UTP category 5, 5e cable(≤100m)； 1000BASE-T: UTP category 5e,6 cable(≤100m) MAC Address Table 8K, Automatic study, automatic updates Jumbo frame 9216Bytes Packet buffer 2M bit Transfer Mode Store-and-forward Packet forwarding rate 13.4Mpps Bandwidth 18 Gbps Fan Fanless Device Dimension 200*118*44mm Machine Weight >1kg Green energy saving Support IEEE（802.3az) Mains Input 100~240V AC， 50/60Hz Operating Temperature 0°C ~ 40 °C Storage Temperature -40 °C ~ 70 °C Operating Humidity 10% ~ 90% non-condensing Storage Humidity 5% ~ 90% non-condensing Surge Protection ±4KV MTBF >50000 hour Electrostatic standard Contact 6KV, air 8KV
