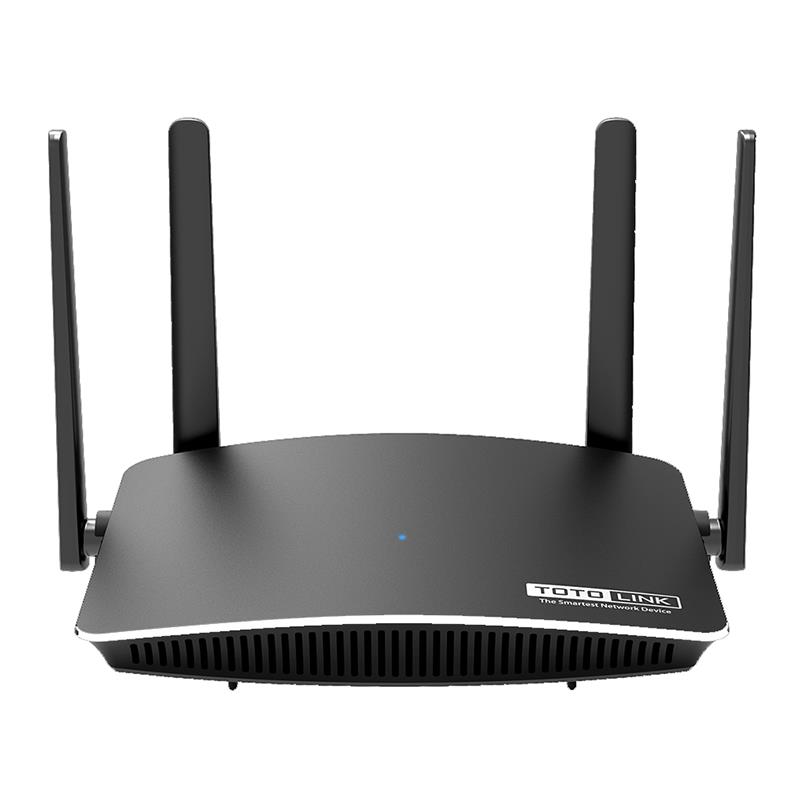

The A720R is a fast 802.11ac router with incredible range.
Its better than many routers that are twice as expensive.
This advanced Wi-Fi is designed for high-traffic online activities and can help to run applications at triple the speed of the previous 802.11n standard.
Equipped with 4 pieces omni-directional antennas, A720R delivers Wi-Fi speed up to 1167Mbps.
Meanwhile, fast WAN port and LAN ports offer a stable capability for data streaming via cable connection.
It is an ideal choice for the homes or offices with a high demand for the Internet access.
Features
Comply with the IEEE 802.11ac Wave 2 Wi-Fi standard.1167Mbps in total on dual band, 867Mbps on 5GHz and 300Mbps on 2.4GHz Beamforming technology allows to intensively transmit the signal to the directions of the other wireless connected terminals, improving the using-efficiency of the bandwidth and reducing the dead spots and the surrounding unnecessary RF interference.Fast WAN/LAN ports offers a stable capability for data streaming via cable connection.Support DHCP, Static IP, PPPoE, PPTP and L2TP connection mode.Support IPv6, the next generation of internet protocol, helping you to future-proof your network.Provides WPA/WPA2 mixed security.QoS function allows to change the bandwidth for different terminals via IP address.IPTV function allows to enjoy online movies at home.Support IP address filtering, port filtering, MAC filtering, URL filtering and port forwarding. Multiple SSIDs allows to create different SSIDs for different groups, better for Internet access management.Smart UI design or totolink router APP is easy for the users to finish the basic configuration with their cellphones.

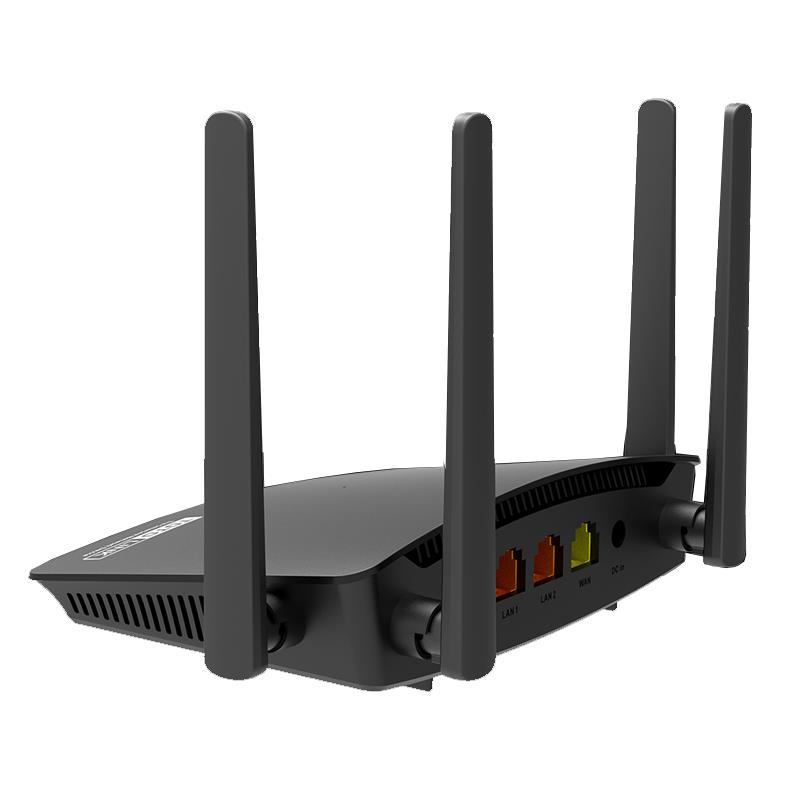

Interface: 2 *100Mbps LAN Ports, – 1 *100Mbps WAN Port
Power Supply: DC 9V/0.8A
Button: 1 *RST/WPS Button
LED Indicator: 1 *SYS
Antenna ” – 2 * 2.4GHz fixed antennas(5dBi)- 2 * 5GHz fixed antennas(5dBi)
Dimensions (L x W x H) – 142X95 X41mm
Wireless Standards: – IEEE 802.11ac, – IEEE 802.11a, – IEEE 802.11b, – IEEE 802.11g, – IEEE 802.11n
RF Frequency :- 2.4GHz/5GHz
Data Rate: – 2.4GHz: Up to 300Mbps- 5GHz: Up to 867Mbps
EIRP: – 2.4GHz – 20dBm – 5GHz – 20dBm
Wireless Security: – WPA/WPA2 Mixed
Operation Mode: – Gateway Mode – Repeater Mode – AP Mode – WISP Mode
Wireless: – Basic setup- Guest Network(Multiple SSID) – Wireless Schedule – Access Control – Advanced setup-
Parental Control: – Internet time control based on MAC
QoS : Up/Down speed control on WAN, – Bandwidth control based on IP address
Device management: – Static Route – Routing Table – IP/MAC Binding
Security: – MAC Filtering – IP/Port Filtering – URL Filtering
NAT: – Virtual Server(Port Forwarding) – DMZ – VPN passthrough
Tools: – Upgrade Firmware – Time Setup – Remote management – Password Settings – Reboot Schedule – System Log and so on
Package Contents
A720R Wireless Router *1
Power Adapter *1
Ethernet Cable *1
Quick Installation Guide *1
